Tubing & Pipes
Prefabricated tubing and pipe that cuts field labor and keeps your grouting and anchor work moving — built to your specifications and shipped fast.
Everything to finish the assembly
Black HDPE tubing plus a complete range of PVC pipe fittings to round out your post-grout and anchor assemblies. Order it alongside your centralizers and tube so it all arrives together, ready for the field.
- Plain PVC pipe
- Caps & couplers
- Adapters
- Primer & cement
- Type 1120 PVC quality
- Made in the U.S.A.

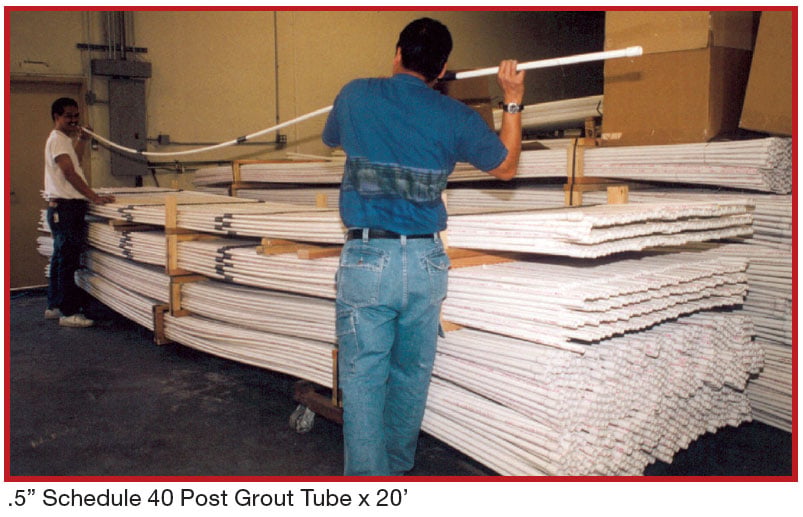

An economical way to increase anchor bond value
Drilling contractors across the U.S. find it most economical to order prefabricated post-grout tubing and riser pipe, reducing field labor costs. C&M's post-grout tubing has proven its reliability on countless projects nationwide.
- 1, 2, 3, 4 & 5 outlet as required
- Only quality Type 1120 PVC pipe
- Grout outlets precision cut to .250″ × .250″
- Improved pressure control, less pipe breakage
- 60-Duro gum-rubber sleeves, .125″ wall × 4″
- Factory belled ends for quick connections
- Meets or exceeds ASTM D1785
- Same-day shipping · Made in the U.S.A.

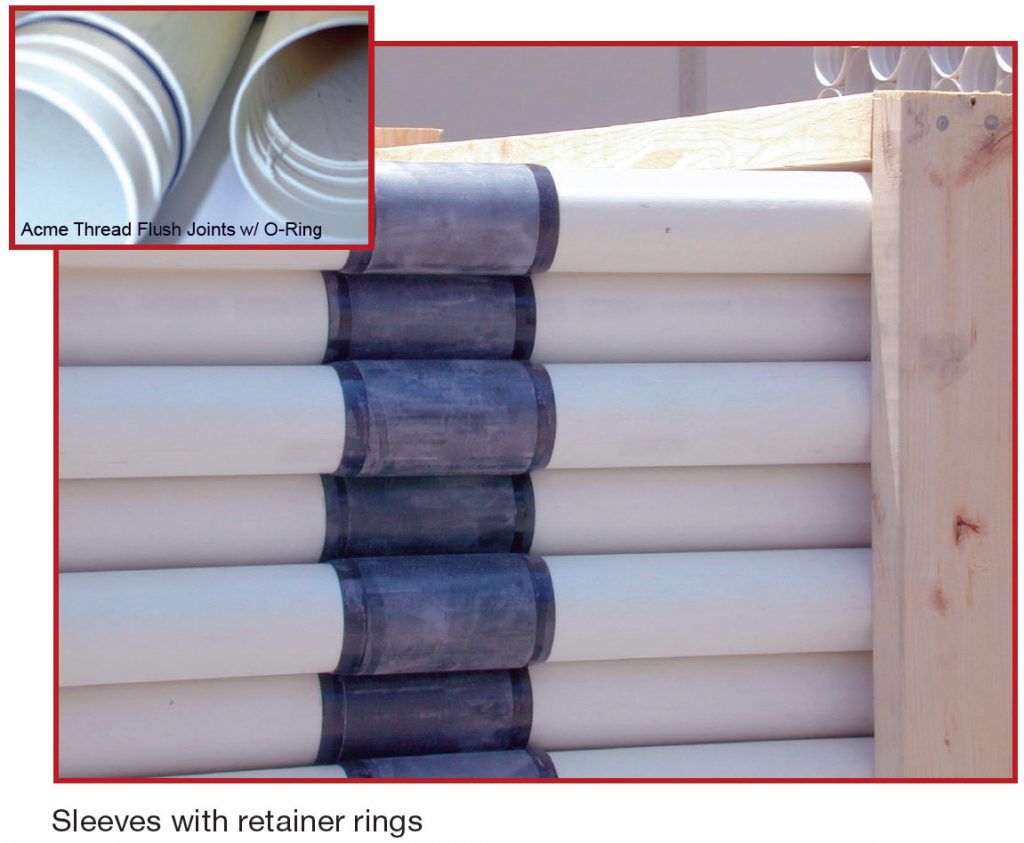

Sleeve port pipe, valved & ready
PVC tubes with four holes drilled offset at 90° on specified centers. Each hole is covered with a gum-rubber sleeve, with tapered rings cemented at every end — a valve design comparable to the machined & inlaid method, without the machining costs.
Available in 1″, 1.5″, 2″, 3″ and 4″ Schedule 40 in lengths through 20′. Belled (spigot) ends available on 20′ lengths; Schedule 40/80 couplers and caps for all diameters. Flush-thread coupling available. The same sizes are available in steel casing.
- Caps & point caps
- Couplers
- PVC pipe-wrapped rubber ends
- Tapered retainer rings, cemented
- Cleaned & deburred
- International shipments
Spec your tubing order
Tell us the outlets, sizes and lengths you need — we'll prefabricate it to your job and ship it out, often the same day.
